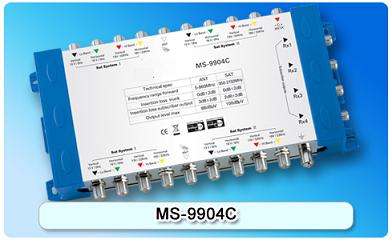

150658. MS-9904C Cascadable Multiswitch of 9 in 4, 9 In Series

C means Cascade type, E means End type Power supplied by satellite receiver and external power supply; 8 SAT inputs + 1 ANT input, 4 output. Cascade type; supports 8SAT + 1ANT connect with next stage; SAT IF selected by 13/18V, 0-22KHz and DiSEqC 1.0/2.0 commands.

Detailed description

Features:

C means Cascade type, E means End type
Power supplied by satellite receiver and external power supply
8 SAT inputs + 1 ANT input, 4 output. Cascade type
supports 8SAT + 1ANT connect with next stage
SAT IF selected by 13/18V, 0-22KHz and DiSEqC 1.0/2.0 commands

Specifications

Item	Specification	Item	Specification
Frequency Range ANT	5-860(MHz)	Return Loss SAT Inputs	10(dB)
Frequency Range SAT	950-2150(MHz)	Return Loss ANT Input	12(dB)
Insertion Loss ANT	5(dB)	Return Loss Outputs	8(dB)
Insertion Loss SAT	4(dB)	Output Level ANT	88(dBuV)
Insertion Loss Trunk(for cascadable type)	0(dB)	Output Level SAT	100(dBuV)
Isolation In-In SAT	25(dB)	Normal Working Voltage	12-20(V)
Isolation In-In SAT/ANT	25(dB)	DC Power Consumption	200(mA)
Isolation Between Outputs	25(dB)	Supply Voltage(VDC)	20V(±1)2000mA
Switching Isolation SAT Inputs	28(dB)	Temperature Range	-20℃-60℃
Cross Isolation(for cascadable type)	25(dB)	Impedance(all ports)	75(Ω)

Switching Voltage、Signal : 13/18V 、0/22KHz、DiSEqC 1.0，2.0
Connectors:“F” type female
