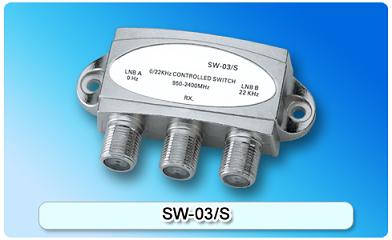

150701. SW-03/S 0/22KHz Switch, 0-22KHz Switch

Zinc die-cast housing, nickel-plated; Excellent quality component, professional circuit design and low loss; 0/22KHz signal processed by professional method and compatible with more types of satellite receiver; Can work normally outdoors under unsheltered circumstance, exquisite case shell attached.

Detailed description

Features:

Zinc die-cast housing, nickel-plated
Excellent quality component, professional circuit design and low loss
0/22KHz signal processed by professional method and compatible with more types of satellite receiver
Can work normally outdoors under unsheltered circumstance, exquisite case shell attached
Select one of two satellite signals through 0/22KHz signal supplied from satellite receiver
Utilize one coaxial cable to transmit control signal and satellite signal simultaneously

Specifications

Item	Specification	Item	Specification
Frequency Range	950-2400(MHz)	Normal Working Voltage	12-20(V)
Insertion Loss	3(dB)	DC Power Consumption	10(mA)
Isolation	20(dB)	DC Max Power Passing	500(mA)
Return Loss	8(dB)	Impedance(all ports)	75(Ω)

Connectors:“F” type female
