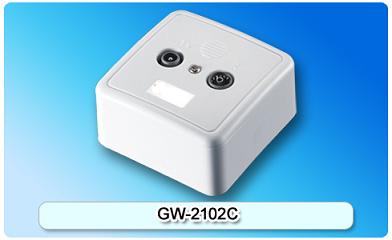

152001. GW-2102C TV/FM wall socket

Zinc die-cast housing and high-grade plastic panel; All ports connector, 75 Ohm; Connector: TV IEC 169-29.5mm plug(TC-T);FM IEC 169-29.5mm socket(TC-Z); 2 output ports dedicated for TV and FM signals; Screenning factor: 5-450MHz≥75dB;450-2300MHz≥75dB.

Detailed description

Features:

Zinc die-cast housing and high-grade plastic panel
All ports connector, 75 Ohm
Connector: TV IEC 169-29.5mm plug(TC-T);FM IEC 169-29.5mm socket(TC-Z)
2 output ports dedicated for TV and FM signals
Screenning factor: 5-450MHz≥75dB;450-2300MHz≥75dB
Suitable for thru type application

Specifications

Item	Frequency Range(MHz)	Insertion Loss(dB)	Return Loss(dB)
IN-TV	5-68	≤8.0	≥10
	125-1000	≤8.0
	88-108	≥25.0
IN-FM	88-108	≤8.0
	5-68	≥25.0
	125-1000	≥25.0
IN-OUT	5-2300	≤2.5
