152002. GW-2103C SAT/TV/FM wall socket
  • 152002. GW-2103C SAT/TV/FM wall socket

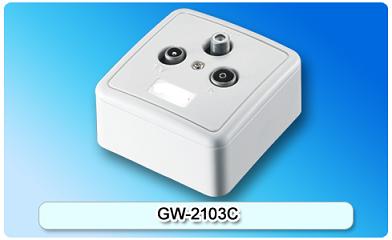

152002. GW-2103C SAT/TV/FM wall socket

Zinc die-cast housing and high-grade plastic panel; Connector: TV IEC 169-29.5mm plug(TC-T);FM IEC 169-29.5mm socket(TC-Z); SAT F-type socket; Screenning factor: 5-450MHz≥75dB;450-862MHz≥75dB;862-2300MHz≥75dB; Suitable for thru type application.
Detailed description

Features:

  • Zinc die-cast housing and high-grade plastic panel
  • Connector: TV IEC 169-29.5mm plug(TC-T);FM IEC 169-29.5mm socket(TC-Z)
  • SAT F-type socket
  • Screenning factor: 5-450MHz≥75dB;450-862MHz≥75dB;862-2300MHz≥75dB
  • Suitable for thru type application
  • Power passing-24V 0.8A(MAX.)

Specifications

Item

Frequency Range(MHz)

Insertion Loss(dB)

Return Loss(dB)

IN-SAT

950-2300

≤13.0

≥10

5-862

≥25.0

IN-TV

5-68

≤13.0

125-862

≤13.0

88-108

≥25.0

950-2300

≥25.0

IN-FM

88-108

≤12.0

5-68

≥25.0

125-862

≥25.0

IN-OUT

5-2300

≤3.0
