110203. UTP Cat6, Patch

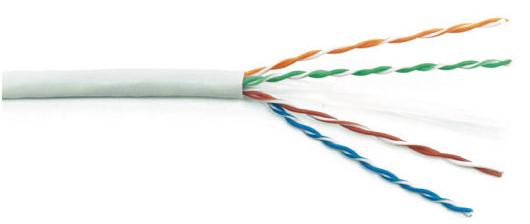

Unshielded Copper cable, 4 pairs, category 6, stranded (patch); Cable is used for indoor installation.
Detailed description

Specifications:

Meets ANSI/EIA/TIA 568-B.2-1 requirements
Fire protection – CM
The cable meets UL 1581 VW-1 fire safety standard
Description:
Unshielded Copper cable, 4 pairs, category 6, stranded (patch)
Cable is used for indoor installation
Materials:
Conductive material: wire made of soft annealed electrolytic copper
Conductor insulation: HDPE, film-porous-film structure
The cable jacket: PVC
Technical characteristics:
Conductor diameter: 7 x 0.2 mm ± 0.01 mm (7" x 0.008" ± 0.004") (24 AWG)
Insulated conductor diameter: 0.04" ± 0.08" (1.03 ± 0.2 mm)
Outer cable diameter: 5.3 ± 0.2 mm (0.2" ± 0.008")
Jacket thickness: 0.4 mm (0.015")
Minimum bend radius: 4 outer cable diameters
Operating temperature: -5°C – +60°C (+23°F – +140°F)
Weight per 1000 ft (304.8 m): 13.7 kg (30.2 lbs)
Standard package: 305 m (1000 ft)
Electrical characteristics:
Frequency, MHz RL Attenuation, dB NEXT, dB PSNEXT, dB ELFEXT, dB PSELFEXT, dB
1.0 20.0 2.4 74.3 72.3 67.8 64.8
4.0 23.0 4.5 65.3 63.3 55.8 52.8
8.0 24.5 6.4 60.8 58.8 49.7 46.7
10.0 25.0 7.1 59.3 57.3 47.8 44.8
16.0 25.0 9.1 56.2 54.2 43.7 40.7
20.0 25.0 10.2 54.8 52.8 41.8 38.8
25.0 24.2 11.4 53.3 51.3 39.8 36.8
31.25 23.3 12.8 51.9 49.9 37.9 34.9
62.5 20.7 18.5 47.4 45.4 31.9 28.9
100.0 19.0 23.8 44.3 42.3 27.8 24.8
200.0 16.4 34.8 39.8 37.8 21.8 18.8
250.0 15.6 39.4 38.3 36.3 19.8 16.8


Conductor resistance at 20°C (68°F) 9.38 Ohm/100 m (2.9 Ohm/100 ft)
DC Resistance Unbalance 5%
Pair-to-Ground Capacitance Unbalance 330 pF/100 m (101 pF/100 ft)
Impedance 0.772-100 MHz 85-115 Ohm
Mutual Capacitance 5.6 nF/m (1.7 nF/ft)
Spark Test 2.5 kV

Ordering
UTP4-C6-PATCH-GY   Twisted Pair Cable UTP, 4 pairs, Category 6, Stranded (Patch), PVC, gray
UTP4-C6-PATCH-WH   Twisted Pair Cable UTP, 4 pairs, Category 6, Stranded (Patch), PVC, white
UTP4-C6-PATCH-BL   Twisted Pair Cable UTP, 4 pairs, Category 6, Stranded (Patch), PVC, blue
UTP4-C6-PATCH-RD   Twisted Pair Cable UTP, 4 pairs, Category 6, Stranded (Patch), PVC, red
UTP4-C6-PATCH-GN   Twisted Pair Cable UTP, 4 pairs, Category 6, Stranded (Patch), PVC, green
UTP4-C6-PATCH-YL   Twisted Pair Cable UTP, 4 pairs, Category 5e, Stranded (Patch), PVC, yellow
UTP4-C6-PATCH-BK   Twisted Pair Cable UTP, 4 pairs, Category 6, Stranded (Patch), PVC, black
UTP4-C6-PATCH-OR   Twisted Pair Cable UTP, 4 pairs, Category 6, Stranded (Patch), PVC, orange
UTP4-C6-PATCH-PK   Twisted Pair Cable UTP, 4 pairs, Category 6, Stranded (Patch), PVC, pink
