130605. IR Dome Camera

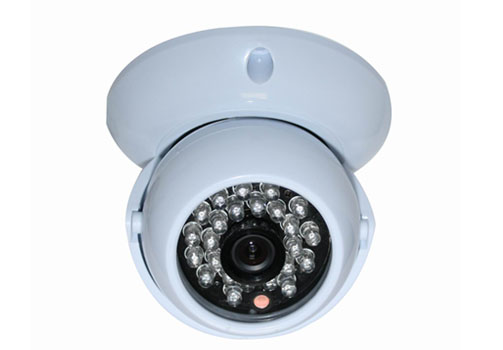

IR Dome Camera
Detailed description
Features
1. 1/3"Sony Super HAD CCD
2. 30 pcs LED lights, perfect night vision
3. Perfect choice for the lift, shops and home, etc.
Parameters
| Model | DF-335RN | DF-336RN |
| Image Sensor | 1/3"Sony Super HAD CCD | |
| Pixels(H×V) | P:512(H) ×582(V) N:512(H) ×492(V) | P:752(H) ×582(V) N:768(H) ×494(V) |
| Scanning System | PAL/NTSC | |
| Horizontal Resolution | 420 TVL | 480 TVL |
| Synchronization | Internal | |
| Minimum Illumination | 0LuxF1.2(IR LED ON) | |
| Backlight Compensation | Automatic | |
| Electronic Shutter | 1/50(1/60)~1/100,000 Sec. | |
| White Balance | Automatic | |
| Lens | Standard Lens 6mm(3.6mm Optional) | |
| IR LED | Ø5×30PCS | |
| IR Wavelength | 850nm | |
| IR Viewing Range | 20m | |
| S/N Ratio | ≥48dB | |
| Gamma Correction | 0.45 | |
| Video Output | 1.0Vp-p/ 75Ω | |
| Operation Temperature | -20℃~50℃ | |
| Power Supply | DC 12V 1,000mA | |
| Dimensions (mm) | Ø94×80mm | |
| Weight (g) | 187g | |
