130814. 40M Waterproof IR Camera

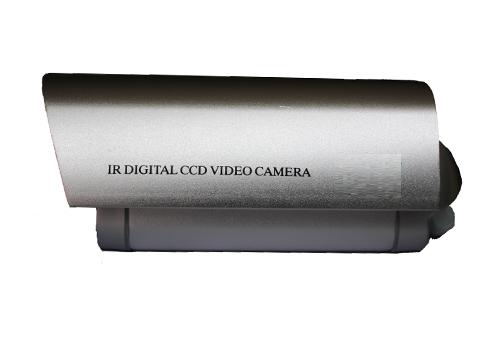

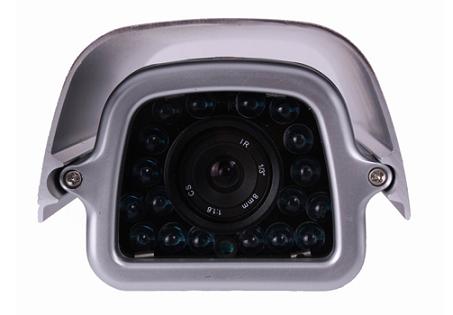

40M Waterproof IR Camera
Detailed description
Features
1. 1/3" Sony Super HAD CCD
2. 650 TVL8mm standard lens
3. Ø8×18PCS
4. 40m IR distance
Parameters
| Model | DF-8088RP | DF-8052RN | DF-8082RN |
| Image Sensor | 1/3" Sony Super HAD CCD | ||
| Pixels(H×V) |
P:500(H) ×582(V) N:510(H) ×492(V) |
P:752(H) ×582(V) N:768(H) ×494(V) |
P:960(H) ×582(V) N:976(H) ×494(V) |
| Scanning System | PAL / NTSC | ||
| Horizontal Resolution | 480 TVL | 540 TVL | 650 TVL |
| Synchronization | Internal | ||
| Minimum Illumination | 0Lux/F1.2(IR LED ON) | ||
| Backlight Compensation | Automatic | ||
| Electronic Shutter | 1/50(1/60)~1/100,000 Sec. | ||
| White Balance | Automatic | ||
| Lens | Standard Lens 8mm(6/12 mm Optional) | ||
| IR LED | Ø8×18PCS | ||
| IR Wavelength | 850nm | ||
| IR Viewing Range | 40m | ||
| S/N Ratio | ≥48dB | ||
| Gamma Correction | 0.45 | ||
| Video Output | 1.0Vp-p/ 75Ω | ||
| Operation Temperature | -20℃~50℃ | ||
| Power Supply | DC 12V, 1,000mA | ||
| Dimensions (mm) | 180×108×79mm | ||
| Weight (g) | 677g | ||
| IP Grade | IP 66 | ||
