130823. 50M Waterproof IR Camera

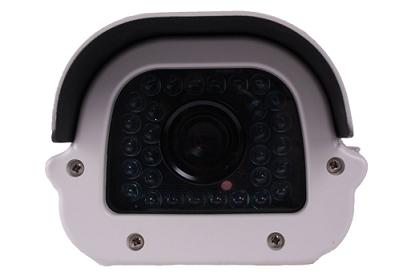

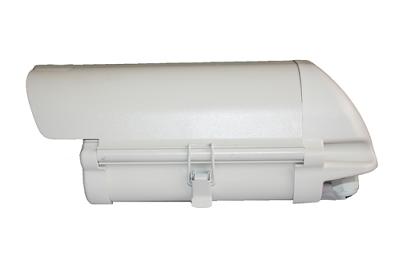

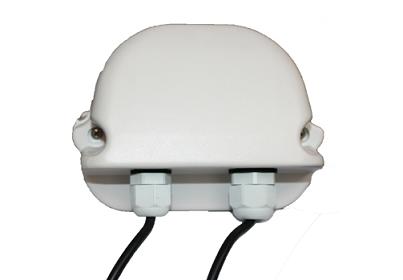

50M Waterproof IR Camera
Detailed description
Features
1. 1/3" Sony Super HAD CCD
2. 540 TVL
3. 8mm standard lens
4. Φ8×30PCS IR LED
5. 50m IR distance
Parameters
| Model | DF-8602RN | DF-8608RN | DF-8652RN |
| Image Sensor | 1/3''Sony Super HAD CCD | ||
| Pixels(H×V) |
P:500(H) ×582(V) N:510(H) ×492(V) |
P:752(H) ×582(V) N:768(H) ×494(V) |
P:752(H) ×582(V) N:768(H) ×494(V) |
| Scanning System | PAL/NTSC | ||
| Horizontal Resolution | 420 TVL | 480 TVL | 540TVL |
| Synchronization | Internal | ||
| Minimum Illumination | 0Lux/F1.2(IR LED ON) | ||
| Backlight Compensation | Automatic | ||
| Electronic Shutter | 1/50(1/60)~1/100,000 Sec. | ||
| White Balance | Automatic | ||
| Lens | Standard Lens 8mm(12/16mm optional) | ||
| IR LED | Ø8×30PCS | ||
| IR Wavelength | 850nm | ||
| IR Viewing Range | 50m | ||
| S/N Ratio | ≥48db | ||
| Gamma Correction | 0.45 | ||
| Video Output | 1.0Vp-p/75Ω | ||
| Operation Temperature | ‘-20~50℃ | ||
| Power Supply | DC 12V，1,000~2,000mA | ||
| Dimensions (mm) | 265×137×101mm | ||
| Weight (g) | 945g | ||
| IP Grade | IP 66 | ||
