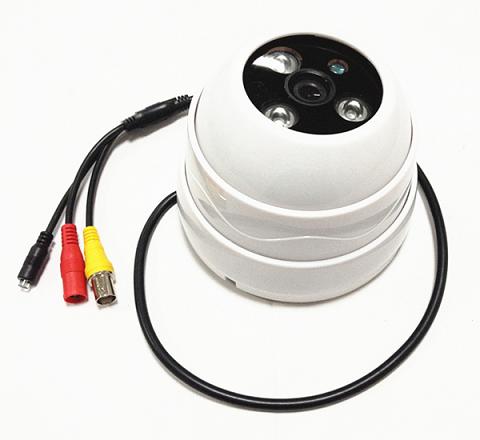

121601. Megapixel HD IR Coax-IP Camera

COAX-IP Camera with 1 X BNC 10M/100M adaptive interface

Detailed description

Description:

GYWS-3013H2 Series Megapixel HD IR IP-Coax Camera

Key Features

▪ High performance Hi3518C, super-low power consumption; Output real time HD 960P with crisp and clear image

▪ Auto exposure ,Auto White Balance, Auto Focus

▪ Unique confocal (CF) Technology,auto focus night vision

▪ 2 megapixel HD Camera lens, code rate five gears adjustable, high quality thicker aluminum shell,

efficient heat conduction technology,

Weatherproof IP66

▪ IR-CUT dual-filter switch, realize day-and-night control, color cast

▪ Using advanced H.264 HP Video Compressive Technology, realize super-low bit rate and high definition quality of image

▪ P2P through, free port forwarding , plug and play, a variety of network security cloud services open cloud monitoring,

a key setting to remote viewing

▪ Support dual-stream, main stream video, auxiliary stream remote viewing,

and solve the broadband bottleneck

▪ Support varieties mobile phones remote monitoring(iPhone,Windows Mobile, Blackberry, Symbian, Android)

▪ Support varieties network browsers (IE,Chrome, Firefox, Safari)

▪ Support auto-iris, auto electric shutter function, can be adaptive to different monitoring environments

▪ Full function: PTZ control, alarm and a key reset etc.

▪ Support WEB, software client, stream media client, support SDK develop

▪ Support varieties languages

▪ Support HVR/NVR docking, support ONVIF standard

Technical Parameter

Model No.		GYWS-6013H2
Camera
Sensor		1/3" Progressive Scan CMOS sensor
Low. illumination		Color 0.5Lux @ (F1.2,AGC ON),0 LUX with IR Black and white0.01Lux @ (F1.2,AGC ON),0 LUX with IR
Shutter		1/50(1/60)s to 1/100,000 s
Lens		4mm,6mm,8mm,12mm,16mm optional
Lens interface style		Fixed lens
Day to night change mode		Support IR-CUT infrared linkage switch or auto switch
Compression standard
Video compression standard		H.264 High Profile, JPEG capture
Compression output bit rate		32 Kbps~12Mbps
Audio compression standard		G.711a
Resolution	30fps960P(1280*960)
Frame rate	50Hz:25fps(1280960) 60Hz:30fps(1280960)
Image setting	Saturation ,brightness, contrast , color
Network function
Storage function	Multiple storage mode(client software storage ,embedded HVR storage, stream media etc.)
Intelligent alarm	Motion detection ,video loss, net line off, IP address confliction , storage full ,storage error
Protocol	TCP/IP,HTTP,ICMP,RTSP,UDP,RTCP,SMTP,FTP,DHCP,DNS,DDNS,PPPOE,UPnP,ARSP (SIP ,802.1x,IPv4)
Normal function	One key reset , anti-flash, dual-stream, heartbeat, password protection
Interface
Audio input	1 * 3.5mm JACK interface(-E support)
Audio output	1 * 3.5mm JACK interface(-E support)
Communication interface	1 * BNC 10M/100M adaptive Ethernet interface
Alarm input	1 switch(-E support)
Alarm output	1 switch(-E support)
General
Working temperature and humidity	-10°C~+60°C,≤90%(no condensation)
Power supply	DC12V±1/2A above
Consumption	IR2: ≤10W MAX
IR Distance	2*wafer dot light array LED ,IR Distance 30M
Dimension(mm)	155(L) 100(W) 80(H)
Weight	0.51KG
