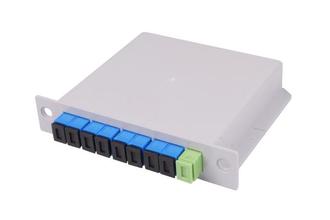

120804. Blade Optical Splitter

Planar Lightwave Circuit Splitter is an optical distribution device based on the waveguide technology. It is made of a silica plate with compact construction, can be operated on a wide range of wavelength with reliable performance and uniformity, particularly suitable for the connection from central office to the optical network termination in passive optical network, i.e. BPON, EPON, GPON, etc.

Detailed description

Applications
FTTx
Analog / Digital Passive Optical Network
Local Area Network / Wide Area Network / Metropolition Area Network
Cable TV Network

Product Performance for PLC Splitter
1xN Series

Parameters	Unit	1 x 2	1 x 4	1 x 8	1 x 16	1 x 32	1 x 64
Operating Bandwidth	nm	1260 —1610
Insertion Loss	dB	≤ 4.1	≤ 7.4	≤ 10.7	≤ 13.9	≤ 17.2	≤ 21.5
Polarization Dependent Loss	dB	≤ 0.3	≤ 0.3	≤ 0.3	≤ 0.3	≤ 0.3	≤ 0.5
Loss Uniformity	dB	≤ 0.8	≤ 0.8	≤ 1.0	≤ 1.4	≤ 1.6	≤ 2.0
Return Loss	dB	≥ 50
Directivity	dB	≥ 55

2xN Series

Parameters	Unit	2 x 2	2 x 4	2 x 8	2 x 16	2 x 32	2 x 64
Operating Bandwidth	nm	1260 —1610
Insertion Loss	dB	≤ 4.4	≤ 7.6	≤ 11.0	≤ 14.8	≤ 17.9	≤ 21.5
Polarization Dependent Loss	dB	≤ 0.3	≤ 0.3	≤ 0.3	≤ 0.3	≤ 0.3	≤ 0.5
Loss Uniformity	dB	≤ 0.8	≤ 1.0	≤ 1.2	≤ 1.5	≤ 1.8	≤ 2.0
Return Loss	dB	≥ 50
Directivity	dB	≥ 55

Package size as follows:

Blade PLC splitter package size
Blade PLC splitter package size
Type	1×2	1×4	1×8	1×16	1×32	1×64
Package size (mm) (L × W × H)	130x100x25	130x100x25	130x100x25	130x100x50	266×100×50	266×100×102
Type	2×2	2×4	2×8	2×16	2×32	2×64
Package size (mm) (L × W × H)	130x100x25	130x100x25	130x100x25	130x100x25	266×100×50	266×100×50
