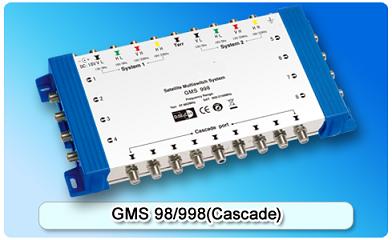

150716. GMS 98/998(Cascade) 9 in 8 Multiswitch

Suitable for multi-satellite and multi-user system; 8 satellite inputs, 1 terrestrial input; 8 subscriber outputs, cascade and finite multiswitches; Low cascading loss and high isolation; Feed from Quattro-LNB or Quad-LNB thru 22KHz generator; SAT IF selected by 13/18V, 22KHz and DiSEqC 2.0 commands.

Detailed description

Features:

Suitable for multi-satellite and multi-user system
8 satellite inputs, 1 terrestrial input
8 subscriber outputs, cascade and finite multiswitches
Low cascading loss and high isolation
Feed from Quattro-LNB or Quad-LNB thru 22KHz generator
SAT IF selected by 13/18V, 22KHz and DiSEqC 2.0 commands
Professional design, exquisite appearance and convenient installation

Specifications

Model	GMS 98/998(Cascade)
Inputs	SAT	8
Inputs	Terr	1
Subscriber Outputs		8
Frequency (MHz)	SAT	950-2150
Frequency (MHz)	Terr	47-862
Trunk Loss(dB) (Cascade)	SAT	5
Trunk Loss(dB) (Cascade)	Terr	4
Tap Loss(dB)	SAT	0dB±1
Tap Loss(dB)	Terr	3dB±1
Return Loss(dB)	SAT	12
Return Loss(dB)	Terr	10
Isolation(dB)	LNB-LNB	35
	Terr-SAT	30
	SAT-Terr	35
	H/V	30
Switching Voltage		15±1V
Switching Commands		DiSEqC 2.0
Power Supply		DC:18V 1.8A
